20ft High Cube Custom Shipping Container Conversion — Anthracite Grey, French Doors & Roller Shutter (New)

Description

The 20ft High Cube Custom Shipping Container Conversion from Atlas Container Supply is a rugged, wind- and watertight steel unit engineered for secure, long-lasting performance.

This 20ft high cube custom shipping container conversion is a new, built-to-order modular building on a high cube 20ft COR-TEN anti-corrosive steel container base — 9ft 6in external height versus the standard 8ft 6in — providing a full additional foot of internal headroom throughout the converted space. The high cube base is the preferred choice for residential use, hospitality units, creative studios, and any application where the extra vertical clearance improves comfort, allows taller interior fit-out elements such as mezzanine shelving or full-height kitchen units, or simply creates a more spacious feel within the same floor footprint.

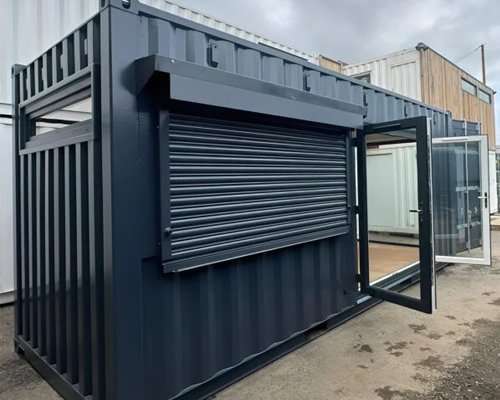

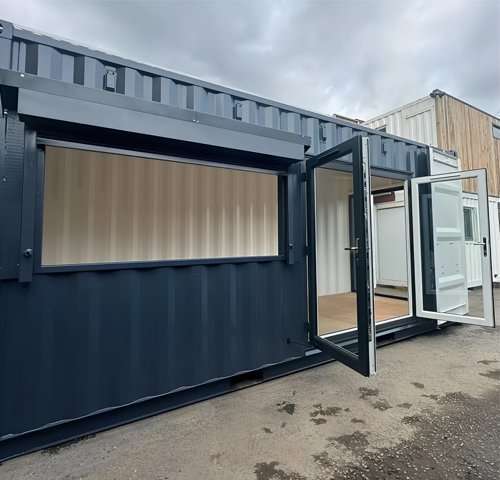

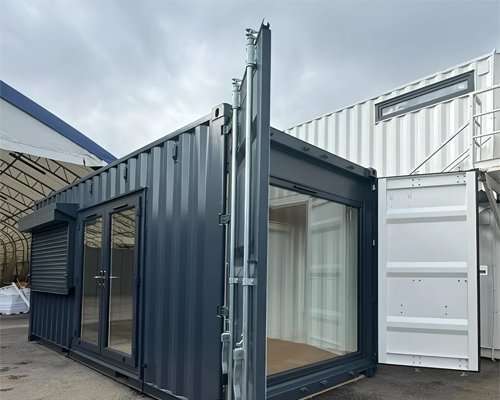

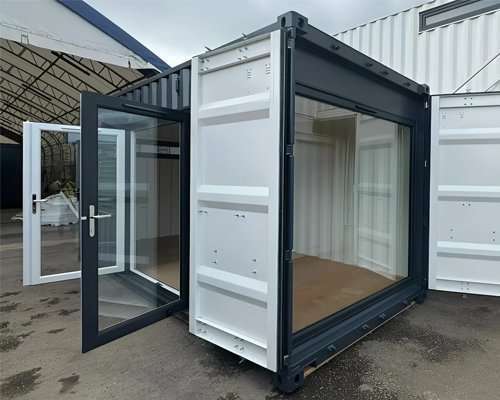

The pictured example is finished in Anthracite Gray externally and white internally with chrome container handles, and features the same glazing and access configuration as our standard height version — a manual roller shutter door (2,000 × 1,000mm) with bullet locks, double-glazed anthracite gray French doors (2,000 × 2,200mm), a large fixed double-glazed window panel (2,100 × 2,200mm), and a high-line opening ventilation window (1,800 × 400mm). In the high cube configuration, the additional 1ft of wall height above the French door header gives the facade a more imposing profile — particularly effective for hospitality, retail, and residential installations where visual impact matters.

The base build includes an insulated floating floor system as standard. Wall and ceiling insulation, electrical installation, climate control, plumbing, interior finishes, and branding or cladding upgrades are all available as additional packages. The high cube configuration is also better suited to retrofit insulation packages, as the additional ceiling height accommodates insulation and lining depth without reducing internal headroom below a comfortable working or living height. Specify your requirements at time of order for an itemised quotation. For guidance on container conversion planning and building regulations in the USA, refer to the International Code Council building standards reference.

20ft High Cube Container Conversion — Dimensions

Internal dimensions are pre-lining estimates. Finished clearances will be reduced by insulation and wall lining packages — the additional height of the high cube base makes it the recommended choice when a full insulation and lining package is specified. Confirm finished dimensions with Atlas Container Supply at time of order.

As-Shown Build — High Cube Example Specification

Available Customisation Options — Specify at Order

• Wall and ceiling insulation packages — high cube recommended for full lining fit-out
• Electrical installation — lighting, outlets, and breaker panel
• Climate control — air conditioning and heating units
• Plumbing connections — optional sink or washroom setup
• Interior finishes — vinyl plank flooring, painted panels, custom trim
• Branding, signage, and cladding upgrades
• Alternative door and window configurations
• Mezzanine or elevated storage fit-out (high cube recommended)

What’s Not Included Unless Specified

• Wall and ceiling insulation (floating floor only as standard)
• Electrical installation and consumer unit
• Air conditioning or heating units
• Plumbing or drainage
• Mains electrical or water connection on site
• Site preparation or foundation works
• Crane or lifting equipment
• Furniture or internal fit-out beyond specified finishes
• Local authority planning or building permits

Best Use Cases for a 20ft High Cube Custom Container Conversion

• Residential or hospitality unit where internal headroom is a priority
• Creative studio, artist space, or photography studio
• Retail showroom or premium pop-up shop
• Garden office or home studio with full insulation and lining package
• Food and beverage outlet with full interior kitchen fit-out
• Modular accommodation unit requiring comfortable ceiling height

Prefer a standard height unit? See our 20ft Standard Custom Container Conversion with 8ft 6in external height. Also available: 20ft Container Home Office and 8ft Custom Shipping Container Store.

Every unit is inspected by Atlas Container Supply prior to dispatch.

20ft High Cube Custom Shipping Container Conversion Overview

Engineered for years of dependable service, the 20ft High Cube Custom Shipping Container Conversion pairs cargo-grade steel with a practical, ready-to-use design. Supplied in new condition, it arrives quality-inspected and ready for immediate use across residential, commercial, and industrial applications.

Key Features of the 20ft High Cube Custom Shipping Container Conversion

• Anthracite Gray
• French Doors & Roller Shutter
• Fitted with electrics, lighting, insulation and windows
• Lockable personnel door for security

20FT Specifications

• External dimensions: 20′ × 8′ × 9′6″
• Floor area: ~160 sq ft
• Internal volume: ~1,170 cu ft
• Construction: Corten (weathering) steel, wind & watertight
• Condition: New

Ideal Uses

The 20ft High Cube Custom Shipping Container Conversion is a versatile container office suited to a wide range of jobs, including:

• Construction site offices and command posts
• Backyard studios and home offices
• Remote workspaces and break rooms
• Modular classrooms and clinics

Construction & Durability

Every panel on this 20ft office unit is factory-fresh one-trip steel, formed into corrugations that carry load across the wall rather than through it. That is why a container this size can be stacked several high fully laden and still open cleanly on a level pad. The high-cube profile adds a foot of interior headroom over a standard-height unit, which matters for racking, tall pallets, and any fit-out with a ceiling.

Delivery & Site Preparation

Your 20ft office unit arrives on a tilt-bed and is placed directly on your prepared pad. Allow about 75ft of clear, straight approach so the bed can tilt and slide the unit off. Overhead clearance is the detail people forget: branches and low lines will stop a tilt delivery cold, so check the approach as well as the pad.

Why Buy From Atlas Container Supply

Buying new means you see no wear at all: no dents, no patch welds, no previous cargo. That grading is the whole point: it tells you what you are paying for. Cross-shop Container Home Office, or start with the buyers guide if this is your first container.

20ft High Cube Custom Shipping Container Conversion – Frequently Asked Questions

What can I use it for?

This unit is ideal for construction site offices and command posts, backyard studios and home offices, and more — it adapts easily to residential, commercial, and industrial needs.

Is delivery included?

Delivery is free regardless of how far the unit travels within our service area. You will see it before you commit.

Can I return it?

This is a custom-built or modified unit. Under our refund and returns policy custom-built and modified units are non-returnable, so please confirm the specification with us before you order. Every unit is inspected before dispatch.

Ready to order? Add the 20ft High Cube Custom Shipping Container Conversion to your cart today and enjoy quality-inspected stock, secure checkout, and reliable delivery across the Lower 48 from Atlas Container Supply.
