Description
The 20ft Custom Container Conversion from Atlas Container Supply is a built-to-last, wind- and watertight steel unit engineered for secure, long-lasting performance.
This 20ft custom container conversion is a built-to-order service counter and retail configuration — distinct from our glazed French door office conversion in both access configuration and intended use. Where the French door version is designed for studio, office, and residential applications requiring full-height glazed entry, this variant is configured for retail service, food and beverage, trade counter, and commercial kiosk operations — with a manual roller shutter as the primary service opening and a single swing personnel door as the secure staff entry point. The roller shutter opens upward without swing clearance, allowing the full service counter width to be presented to customers while maintaining a secure closure when the unit is not trading.

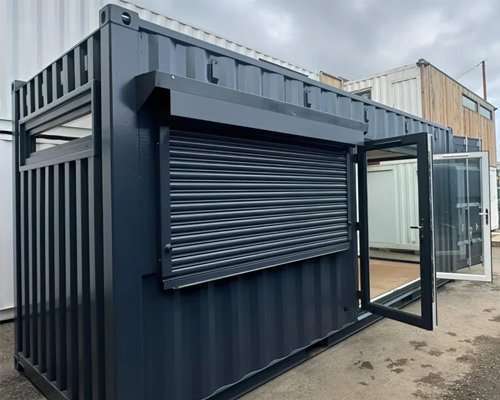

The base container is available in either standard height (8ft 6in) or high cube (9ft 6in) — specify at time of order. The high cube option provides an additional foot of internal headroom, which is beneficial for catering operations requiring extraction ducting above head height, or for retail displays requiring taller internal shelving. The exterior finish, roller shutter size, personnel door position, and all interior elements are fully customisable — the pictured example shows a dark blue exterior with a centrally positioned roller shutter and right-side personnel door, but every element can be adapted to your layout and branding requirements.
The base build includes an insulated floating floor system as standard. Electrical installation, interior lining, climate control, plumbing, signage, and additional openings or windows are all available as optional packages — specify your requirements at time of order for an itemised quotation. For guidance on container conversion planning and building regulations in the USA, refer to the International Code Council building standards reference.
20ft Service Counter Container Conversion — Dimensions
| Dimension | Standard Height | High Cube |
|---|---|---|
| External Length | 20ft (6,058mm) | 20ft (6,058mm) |
| External Width | 8ft (2,438mm) | 8ft (2,438mm) |
| External Height | 8ft 6in (2,591mm) | 9ft 6in (2,896mm) |
| Internal Length (est.) | 19ft 4in (5,898mm) | 19ft 4in (5,898mm) |
| Internal Width (est.) | 7ft 8in (2,352mm) | 7ft 8in (2,352mm) |
| Internal Height (est.) | 7ft 10in (2,393mm) | 8ft 10in (2,698mm) |
Internal dimensions are pre-lining estimates. Finished clearances will be reduced by insulation and lining packages selected — confirm with Atlas Container Supply at time of order.
As-Shown Build — Service Counter Example Specification
| Item | As-Shown Specification |
|---|---|
| Base Container | Standard or high cube — specify at order |
| Exterior Finish | Dark blue — custom colors available |
| Primary Access | Manual roller shutter — side-mounted, size customisable |
| Staff Entry | Single swing personnel door |
| Glazing | Solid panels as shown — windows available as option |
| Floor | Insulated floating floor system |
Available Customisation Options — Specify at Order
- Exterior color and finish
- Roller shutter size and position
- Personnel door position and spec
- Windows or additional glazed openings
- Wall and ceiling insulation packages
- Electrical installation — lighting, outlets, breaker panel
- Climate control — air conditioning and heating
- Plumbing — sink or washroom setup
- Interior finishes — vinyl plank, painted panels, custom trim
- Branding, signage, and cladding upgrades
- High cube base container upgrade
What’s Not Included Unless Specified
- Wall and ceiling insulation (floating floor only as standard)
- Electrical installation
- Climate control
- Plumbing or drainage
- Mains electrical or water connection on site
- Site preparation or foundation
- Crane or lifting equipment
- Local authority planning or building permits
Best Use Cases for a 20ft Roller Shutter Service Container
- Food and beverage service counter at markets, festivals, and events
- Trade counter and tools retail unit with secure overnight closure
- Pop-up retail kiosk with full-width service shutter
- Branded product display and activation space
- Mobile bar or coffee kiosk for hospitality venues
- Drive-up service unit for agricultural, industrial, or commercial sites

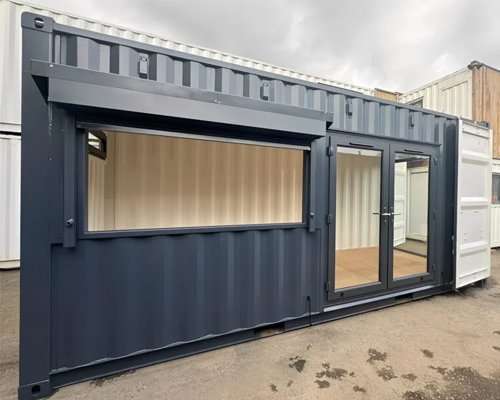

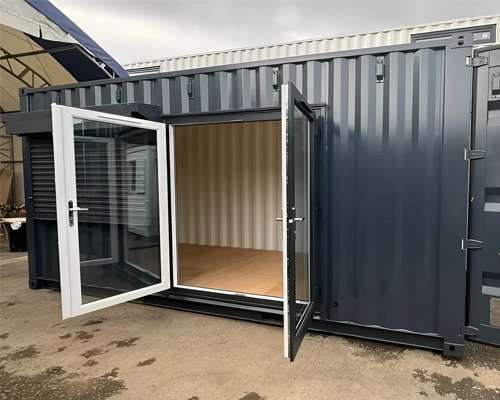

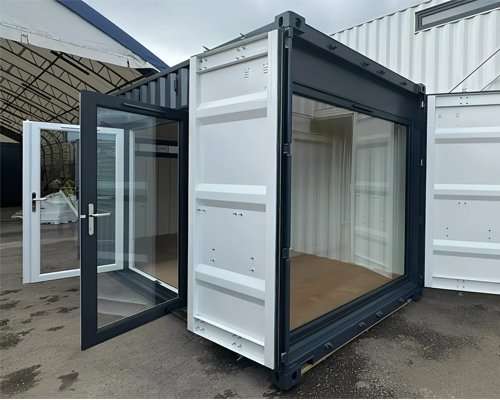

Also available with French doors and glazing: 20ft Standard Custom Container Conversion and 20ft High Cube Custom Container Conversion. Also: 10ft Cladded Food & Drink Outlet Container.
Every unit is inspected by Atlas Container Supply prior to dispatch.
20ft Custom Container Conversion Overview
The 20ft Custom Container Conversion combines rugged construction with everyday practicality, making it a smart long-term investment. Supplied in new condition, it arrives quality-inspected and ready for immediate use across residential, commercial, and industrial applications.
Key Features of the 20ft Custom Container Conversion
- Roller Shutter & Personnel Door
- Service Counter Configuration
- Cargo-grade Corten weathering steel
- Lockbox-ready, secure cargo doors
20FT Specifications
- External dimensions: 20′ × 8′ × 8′6″
- Floor area: ~160 sq ft
- Internal volume: ~1,170 cu ft
- Construction: Corten (weathering) steel, wind & watertight
- Condition: New
Ideal Uses
The 20ft Custom Container Conversion is a versatile shipping container suited to a wide range of jobs, including:
- Secure on-site storage for homes and businesses
- Tools, equipment and seasonal inventory
- Job-site and warehouse overflow
- Long-term weatherproof storage
Construction & Durability
This 20ft steel shipping container uses factory-fresh one-trip steel over a welded steel underframe with cross-members on close centers, which is why the floor takes forklift traffic without deflecting. The roof is a single corrugated sheet — no seams across the span to leak.
Delivery & Site Preparation
The 20ft steel shipping container goes out on a free tilt-bed run with delivery windows confirmed ahead of the date. Allow about 75ft of clear, straight approach so the bed can tilt and slide the unit off. Gravel over compacted base is the cheapest pad that actually works; bare soil will pull moisture and settle unevenly through a wet season.
Why Buy From Atlas Container Supply
Buying new means you see no wear at all: no dents, no patch welds, no previous cargo. Every unit is inspected before it ships and backed by our 30-day return policy. Compare the rest of the range in 20ft Containers, or read the buyers guide if you are still weighing condition against budget.
20ft Custom Container Conversion – Frequently Asked Questions
What can I use it for?
This unit is ideal for secure on-site storage for homes and businesses, tools, equipment and seasonal inventory, and more — it adapts easily to residential, commercial, and industrial needs.
Is delivery included?
Delivery is free regardless of how far the unit travels within our service area. You will see it before you commit.
Can I return it?
This is a custom-built or modified unit. Under our refund and returns policy custom-built and modified units are non-returnable, so please confirm the specification with us before you order. Every unit is inspected before dispatch.
Ready to order? Add the 20ft Custom Container Conversion to your cart today and enjoy quality-inspected stock, secure checkout, and reliable delivery across the Lower 48 from Atlas Container Supply.
