40ft One-Trip High Cube Shipping Container — 9ft 6in, CSC Plate, Lockbox

Description

The 40ft One-Trip High Cube Shipping Container from Atlas Container Supply is a built-to-last, wind- and watertight steel unit engineered for secure, long-lasting performance.

This 40ft one-trip high cube shipping container is a near-new unit manufactured in China and used for a single cargo journey before being offered for sale in the USA. One-Trip condition means the interior walls, floor, door seals, and lockbox are in near-new condition with minimal surface marks — offering the structural and weatherproofing performance of a new container at a lower price point than a direct factory order. The CSC plate is valid and certifies the unit for continued international freight use at a maximum gross weight of 30 tonnes.

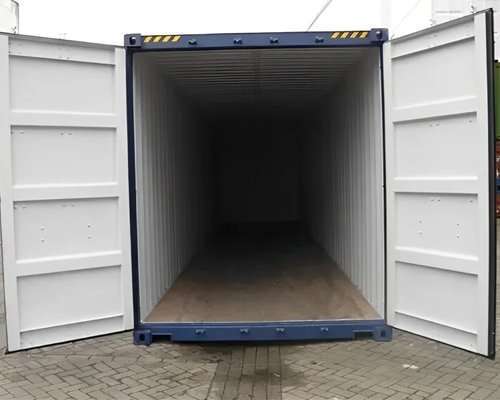

The high cube configuration provides an external height of 9ft 6in (2,896mm) and an internal height of 8ft 10in (2,698mm) — one full foot above a standard 40ft container — giving a total cubic capacity of 2,698 cubic feet. This additional headroom is suited to storing tall plant equipment, diggers on low frames, stacked pallets, and large format goods that would exceed the internal clearance of a standard 8ft 6in container. The wider door opening height of 8ft 6in (2,591mm) on the high cube also allows taller items to be driven or lifted through the end door with greater clearance than a standard unit.

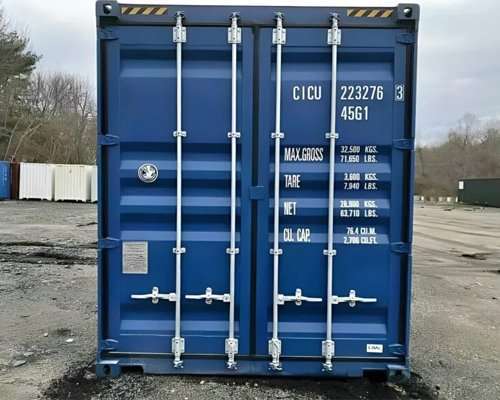

Security is provided by exterior hinged double cargo doors at one end, each fitted with two locking bars and a factory-fitted lockbox that recesses the padlock shackle to reduce bolt cutter exposure. Two forklift pockets on each side — four in total — allow straightforward yard handling from either long face. Four vents provide passive airflow to manage condensation during storage. The floor is 28mm marine-grade plywood on steel cross-members, providing a load-bearing surface rated for heavy pallet and forklift loading. The frame, cladding, and corner castings are COR-TEN weathering steel throughout.

For guidance on container siting and permit requirements in the USA, refer to the International Code Council building standards reference.

40ft One-Trip High Cube Container — Dimensions & Weight

Standard Inclusions — 40ft One-Trip High Cube Container

• COR-TEN steel 40ft high cube ISO container — one-trip near-new condition
• Valid CSC plate — certified to 30 tonne maximum gross weight
• Exterior hinged double cargo doors
• Two locking bars per door
• Factory-fitted lockbox
• 28mm marine-grade plywood floor on steel cross-members
• 4 vents — passive airflow and condensation control
• 2 forklift pockets per side — 4 total
• ISO corner castings — all eight

What’s Not Included

• Padlock
• Ramps or shelving
• Internal lining or insulation
• Site preparation or foundation
• Local authority permits

Best Use Cases for a 40ft One-Trip High Cube Container

• Storage of tall plant equipment, diggers, and machinery on low frames
• High-volume stacked pallet storage requiring extra internal clearance
• International freight operations — CSC plate valid to 30 tonnes gross
• Construction site materials and equipment storage
• Agricultural and farm storage for large equipment and supplies
• Container modification projects requiring maximum internal height

Also available: 40ft Used High Cube Shipping Container, 40ft One-Trip High Cube Container with 4 Side Doors, and 40ft High Cube Container with 2 Side Doors.

Every unit is inspected by Atlas Container Supply prior to dispatch.

40ft One-Trip High Cube Shipping Container Overview

The 40ft One-Trip High Cube Shipping Container combines rugged construction with everyday practicality, making it a smart long-term investment. Supplied in one-trip condition, it arrives quality-inspected and ready for immediate use across residential, commercial, and industrial applications.

Key Features of the 40ft One-Trip High Cube Shipping Container

• 9ft 6in
• CSC Plate
• Lockbox
• Extra foot of interior height (9′6″)
• Same footprint as a standard container

40FT Specifications

• External dimensions: 40′ × 8′ × 9′6″
• Floor area: ~320 sq ft
• Internal volume: ~2,390 cu ft
• Construction: Corten (weathering) steel, wind & watertight
• Condition: One-trip

Ideal Uses

The 40ft One-Trip High Cube Shipping Container is a versatile high cube container suited to a wide range of jobs, including:

• Tall cargo and palletized goods
• Container conversions needing headroom
• General high-volume storage

Construction & Durability

This 40ft steel shipping container uses factory-fresh one-trip steel over a welded steel underframe with cross-members on close centers, which is why the floor takes forklift traffic without deflecting. The roof is a single corrugated sheet — no seams across the span to leak. The high-cube profile adds a foot of interior headroom over a standard-height unit, which matters for racking, tall pallets, and any fit-out with a ceiling.

Delivery & Site Preparation

The 40ft steel shipping container goes out on a free tilt-bed run with delivery windows confirmed ahead of the date. A 40ft-class unit needs roughly 100ft of straight approach for the truck to back in and tilt. Gravel over compacted base is the cheapest pad that actually works; bare soil will pull moisture and settle unevenly through a wet season.

Why Buy From Atlas Container Supply

Buying new means you see no wear at all: no dents, no patch welds, no previous cargo. Every unit is inspected before it ships and backed by our 30-day return policy. Compare the rest of the range in 40ft Containers, or read the buyers guide if you are still weighing condition against budget.

40ft One-Trip High Cube Shipping Container – Frequently Asked Questions

What can I use it for?

This unit is ideal for tall cargo and palletized goods, container conversions needing headroom, and more — it adapts easily to residential, commercial, and industrial needs.

Is delivery included?

Delivery is free regardless of how far the unit travels within our service area. You will see it before you commit.

Can I return it?

Our 30-day return policy covers it. Read the returns page for how freight and restocking are handled before you order.

Ready to order? Add the 40ft One-Trip High Cube Shipping Container to your cart today and enjoy quality-inspected stock, secure checkout, and reliable delivery across the Lower 48 from Atlas Container Supply.
