20ft High Cube Full Side Access Container — 9ft 6in, CSC Plate, RAL5013 Cobalt Blue (New)

Description

The 20ft High Cube Full Side Access Container from Atlas Container Supply is a rugged, wind- and watertight steel unit engineered for secure, long-lasting performance.

This 20ft high cube full side access container is the tallest and most accessible unit in our 20ft full side access range — combining the 9ft 6in high cube profile with a 5,702mm full-length side door opening across the entire long face of the container. It is distinct from our 20ft Used CW Full Side Access Container and 20ft One-Trip Full Side Access Container — both of which are standard 8ft 6in height units — by providing an internal height of 2,607mm (8ft 7in) and a side door height of 2,494mm (8ft 2in), allowing taller cargo to be loaded from the side with significantly more vertical clearance than the standard height versions.

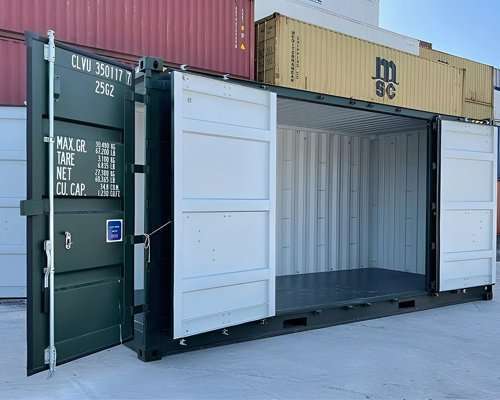

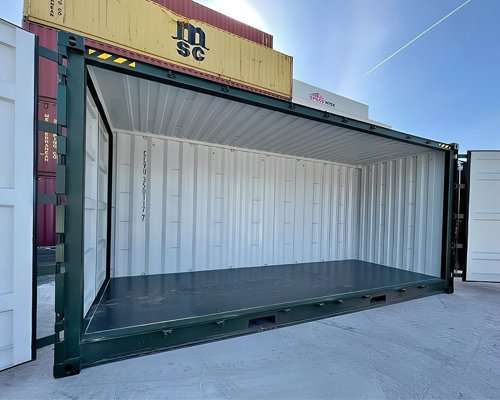

The side door opening of 5,702mm wide × 2,494mm tall provides full-length, near-full-height access along the long face of the container — the largest access aperture of any single-unit 20ft container in this range. The end door opening of 2,114mm wide × 2,494mm tall provides a secondary access point at the rear. Both openings are fitted with high handles, locking gear, and a lockbox for secure closure. The unit is CSC certified to a maximum cargo weight of 24,000 kg — the structural modification required for the full side opening reduces the maximum gross weight from the standard 20ft high cube specification, consistent with all full side access units in this range.

The standard exterior color is RAL5013 Cobalt Blue — a deep, professional-grade blue finish applied as standard. Any RAL color is available on request at time of order for branding, fleet matching, or aesthetic preference. The floor is wooden construction — confirm exact floor type and thickness with Atlas Container Supply before ordering if specific load rating or surface spec is relevant to your application. Two forklift pockets are fitted for yard and site repositioning. The container is manufactured from COR-TEN weathering steel and is designed to be stackable in standard ISO configurations. For guidance on container siting and permit requirements in the USA, refer to the International Code Council building standards reference.

20ft High Cube Full Side Access Container — Dimensions & Weight

Standard Inclusions — 20ft High Cube Full Side Access Container

• COR-TEN weathering steel 20ft high cube ISO frame

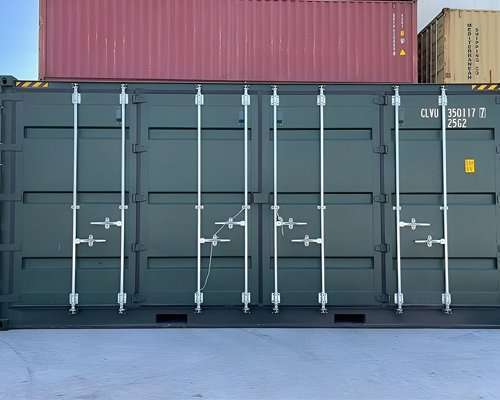

• Full-length side door — 5,702mm × 2,494mm opening

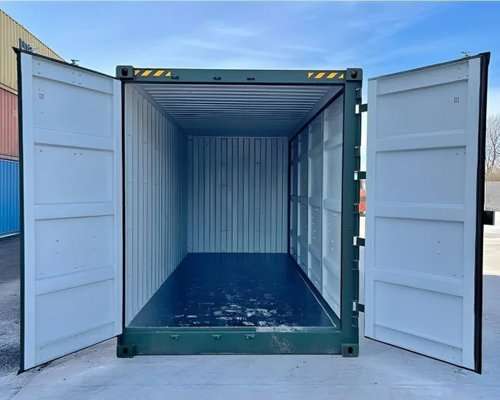

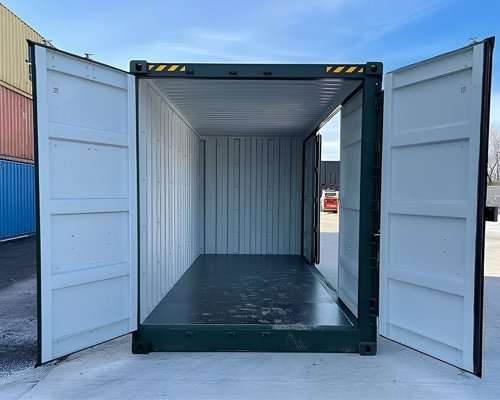

• End double cargo doors — 2,114mm × 2,494mm opening
• High handles and locking gear on all doors
• Lockbox — fitted
• Wooden floor — confirm type and thickness with supplier
• Air vents — confirm quantity with supplier
• Forklift pockets — 2
• ISO corner castings — all eight
• Valid CSC plate — certified to 24,000 kg maximum cargo weight
• Standard color RAL5013 Cobalt Blue — any RAL available on request

What’s Not Included

• Padlock
• Ramps or shelving
• Internal lining or insulation
• Site preparation or foundation
• Local authority permits

Best Use Cases

• Side loading of tall cargo requiring high cube clearance beyond a standard height full side access unit
• International freight requiring full side access with a valid CSC plate
• Tall machinery, vehicles, and equipment requiring both wide and tall side entry
• Branded fleet storage in RAL color of your choice
• Construction and industrial site storage requiring maximum side access height
• Conversion projects requiring a high cube open side base unit

Also available in standard height: 20ft Used Full Side Access Container and 20ft One-Trip Full Side Access Container. Also: 40ft Full Side Access High Cube Container.

Every unit is inspected by Atlas Container Supply prior to dispatch.

20ft High Cube Full Side Access Container Overview

Engineered for years of dependable service, the 20ft High Cube Full Side Access Container pairs cargo-grade steel with a practical, ready-to-use design. Supplied in new condition, it arrives quality-inspected and ready for immediate use across residential, commercial, and industrial applications.

Key Features of the 20ft High Cube Full Side Access Container

• 9ft 6in
• CSC Plate
• RAL5013 Cobalt Blue
• Full-length opening side doors
• Standard rear cargo doors retained

20FT Specifications

• External dimensions: 20′ × 8′ × 9′6″
• Floor area: ~160 sq ft
• Internal volume: ~1,170 cu ft
• Construction: Corten (weathering) steel, wind & watertight
• Condition: New

Ideal Uses

The 20ft High Cube Full Side Access Container is a versatile open side container suited to a wide range of jobs, including:

• Fast full-length loading and access
• Retail display and merchandising
• Warehousing with forklift side-loading

Construction & Durability

This 20ft steel shipping container uses factory-fresh one-trip steel over a welded steel underframe with cross-members on close centers, which is why the floor takes forklift traffic without deflecting. The roof is a single corrugated sheet — no seams across the span to leak. The high-cube profile adds a foot of interior headroom over a standard-height unit, which matters for racking, tall pallets, and any fit-out with a ceiling.

Delivery & Site Preparation

The 20ft steel shipping container goes out on a free tilt-bed run with delivery windows confirmed ahead of the date. Allow about 75ft of clear, straight approach so the bed can tilt and slide the unit off. Gravel over compacted base is the cheapest pad that actually works; bare soil will pull moisture and settle unevenly through a wet season.

Why Buy From Atlas Container Supply

Buying new means you see no wear at all: no dents, no patch welds, no previous cargo. Every unit is inspected before it ships and backed by our 30-day return policy. Compare the rest of the range in 20ft Containers, or read the buyers guide if you are still weighing condition against budget.

20ft High Cube Full Side Access Container – Frequently Asked Questions

What can I use it for?

This unit is ideal for fast full-length loading and access, retail display and merchandising, and more — it adapts easily to residential, commercial, and industrial needs.

Is delivery included?

Delivery is free regardless of how far the unit travels within our service area. You will see it before you commit.

Can I return it?

Our 30-day return policy covers it. Read the returns page for how freight and restocking are handled before you order.

Ready to order? Add the 20ft High Cube Full Side Access Container to your cart today and enjoy quality-inspected stock, secure checkout, and reliable delivery across the Lower 48 from Atlas Container Supply.
