Driveway-Sized Footprint, Full-Size Hydraulic Dumping

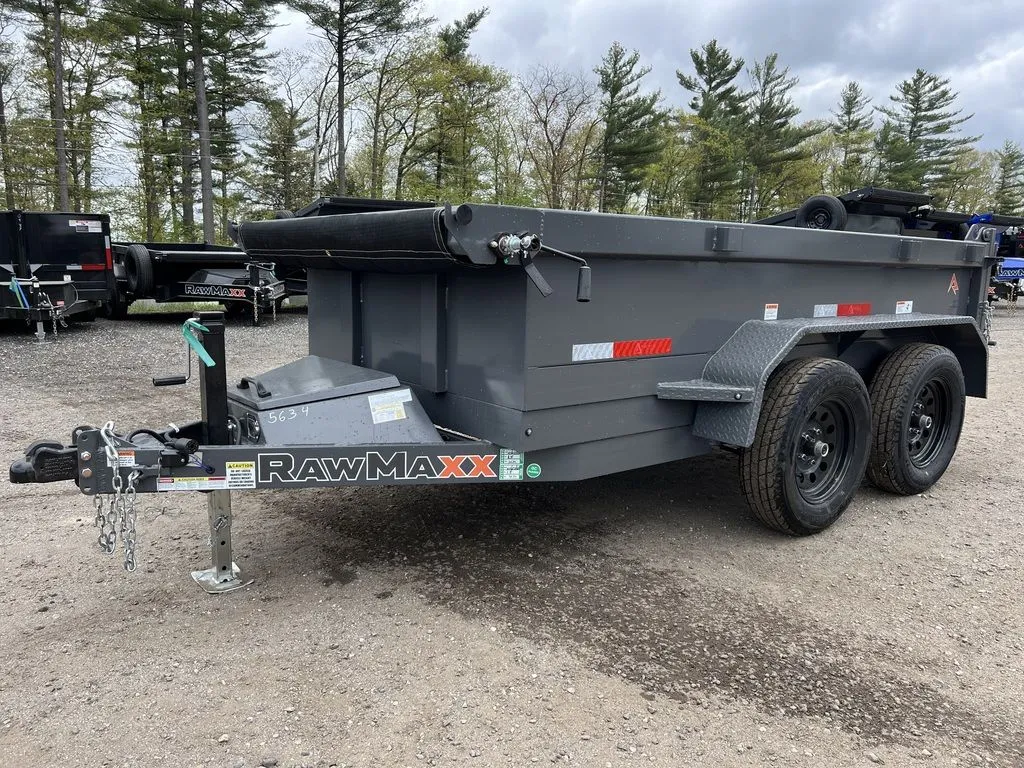

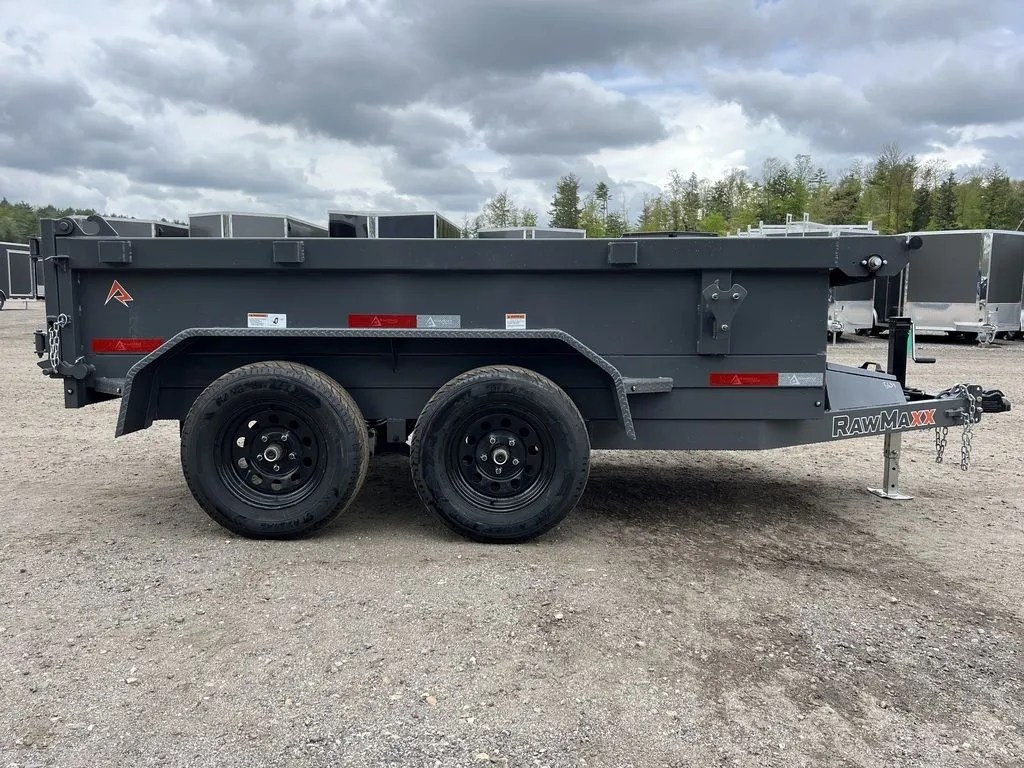

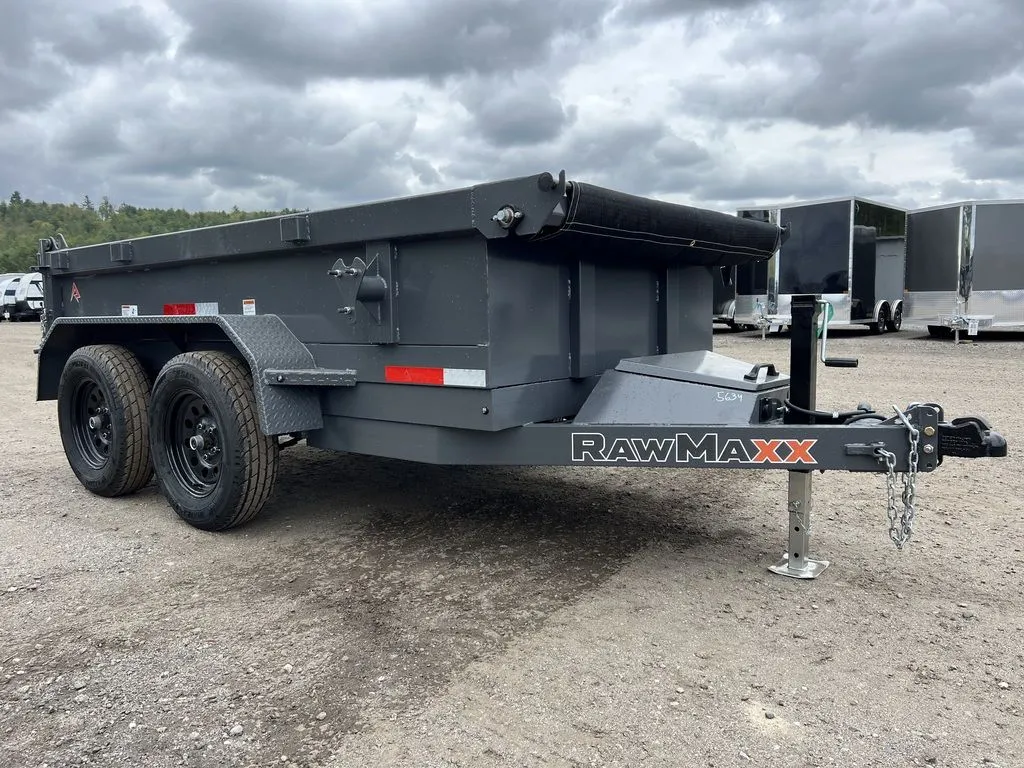

The trouble with most dump trailers is that they are too big for the place the work actually happens. A ten-foot deck changes that. This new 2024 RawMaxx SDX-10-BP7K turns around in a residential driveway, fits down a narrow side yard and still tips its load hydraulically instead of leaving you with a shovel and a bad back. Homeowners taking on a landscaping project, small crews moving mulch and stone, and light contractors clearing renovation debris are exactly who it is sized for.

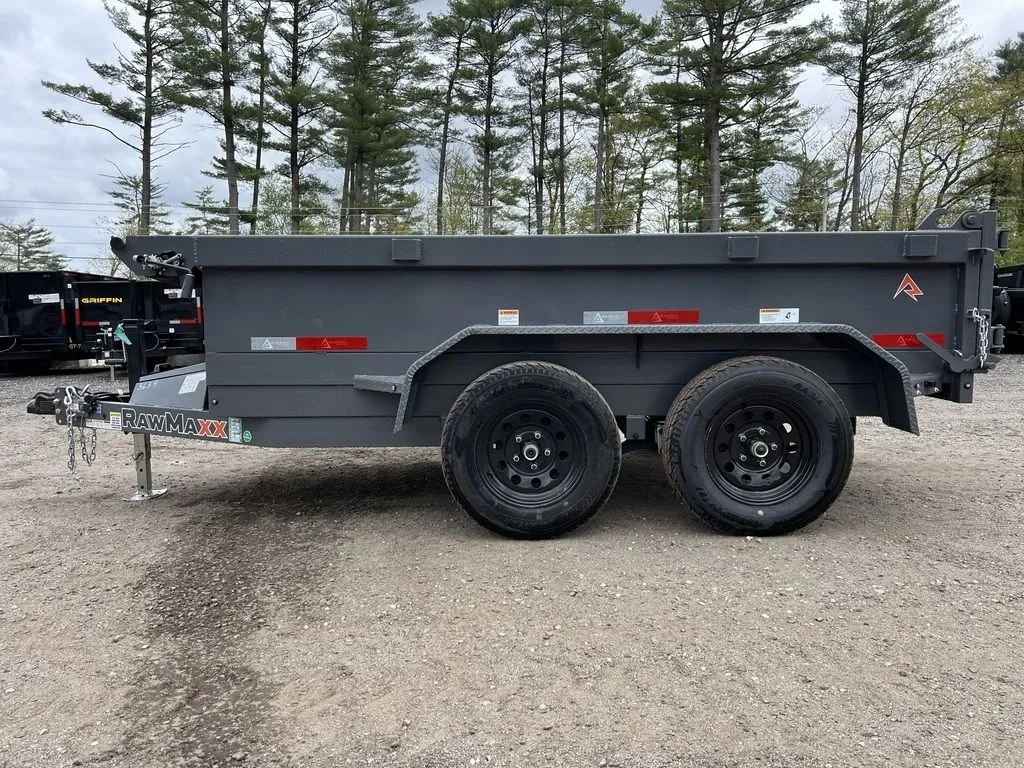

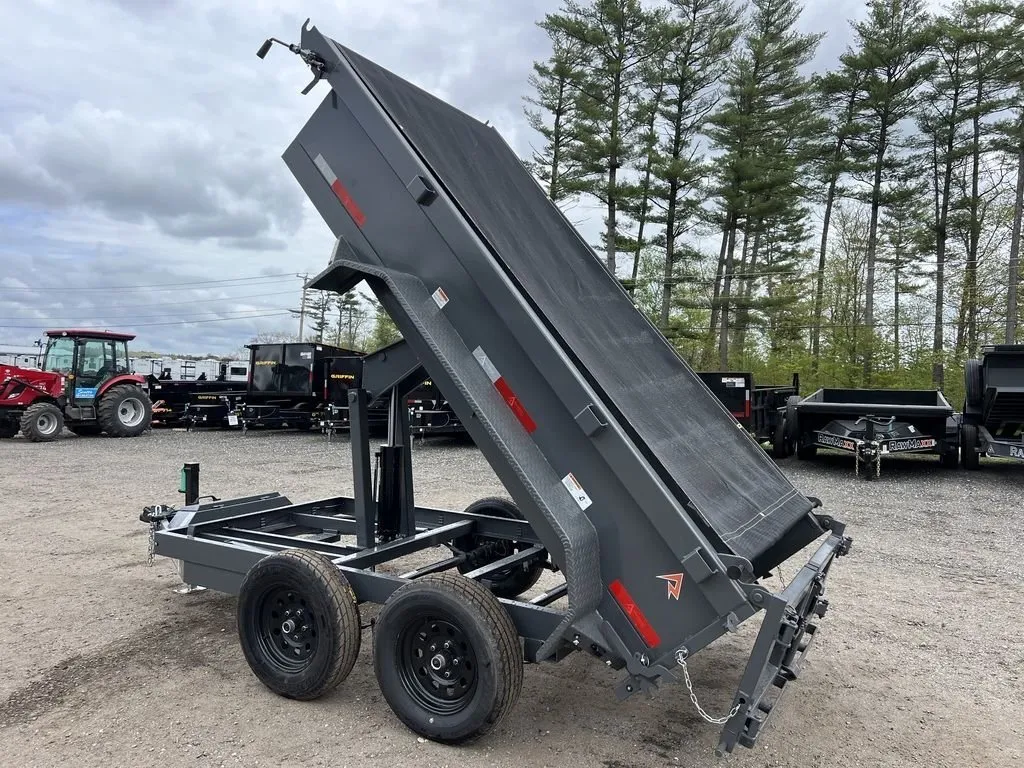

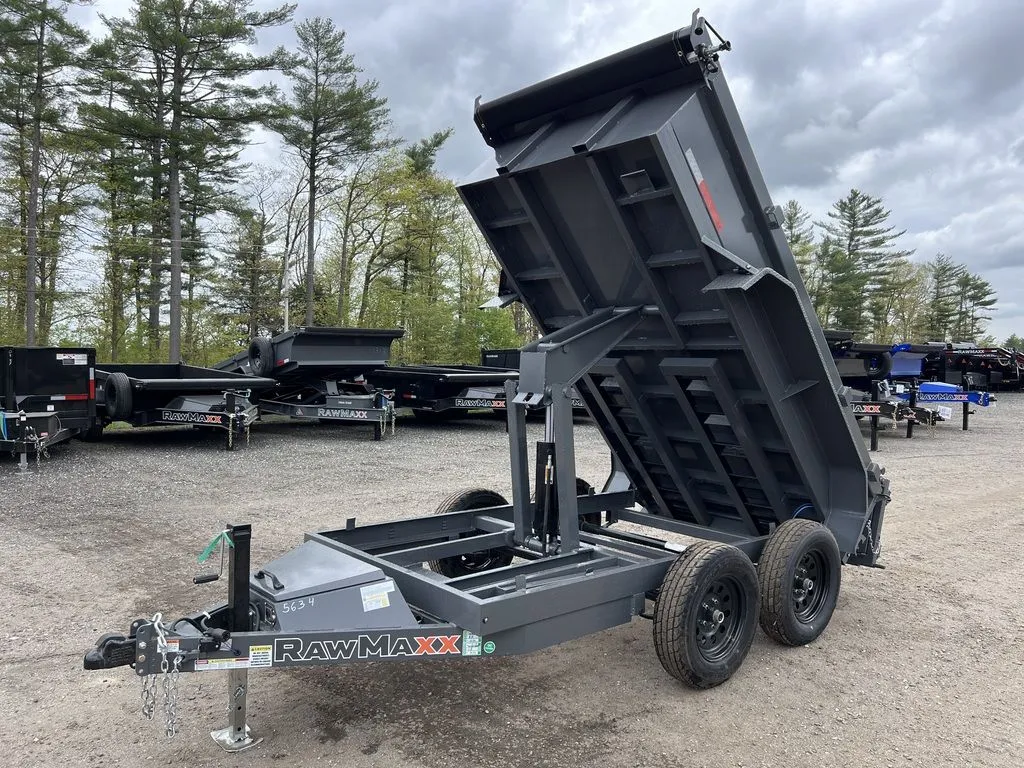

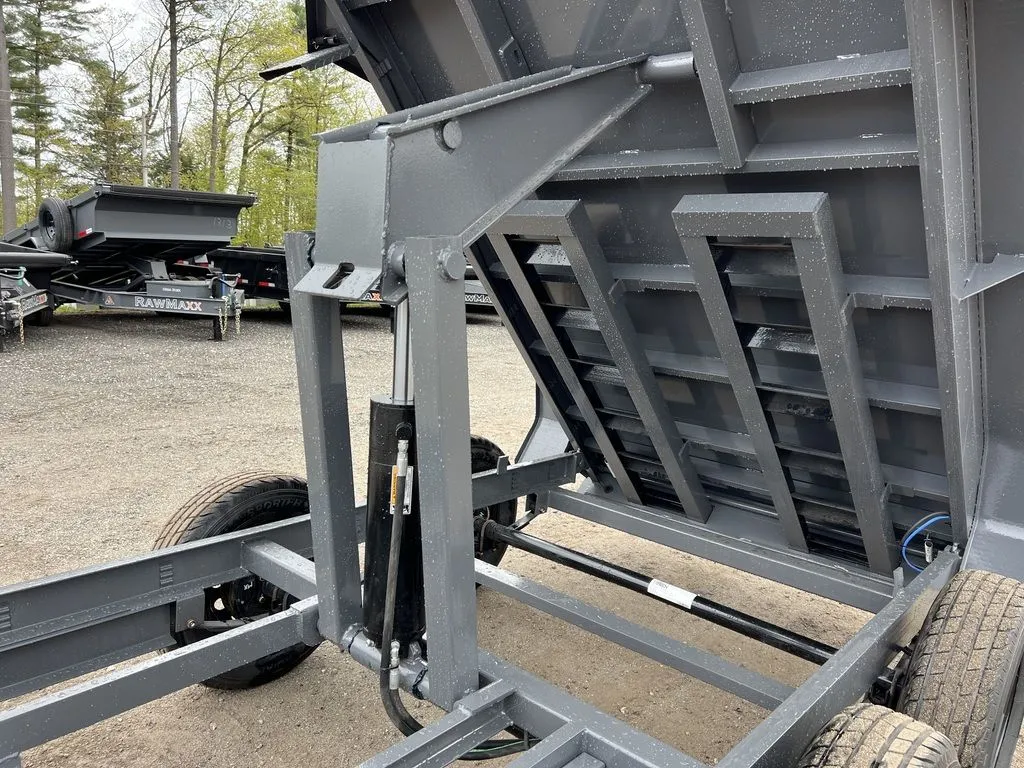

A scissor-lift hoist raises the bed to dump soil, gravel or torn-out drywall in seconds. Tall 12-gauge sides standing 19 in. above the floor mean the box holds a worthwhile volume despite the short deck, so you make fewer round trips. Two 3,500 lb Dexter electric-braked axles under a 5 in. channel frame with crossmembers on 16 in. centers give it the structure and stopping power to run dense loads safely, and Shadow Grey powder coat resists the scuffs and rust that ordinary paint surrenders to in a season.

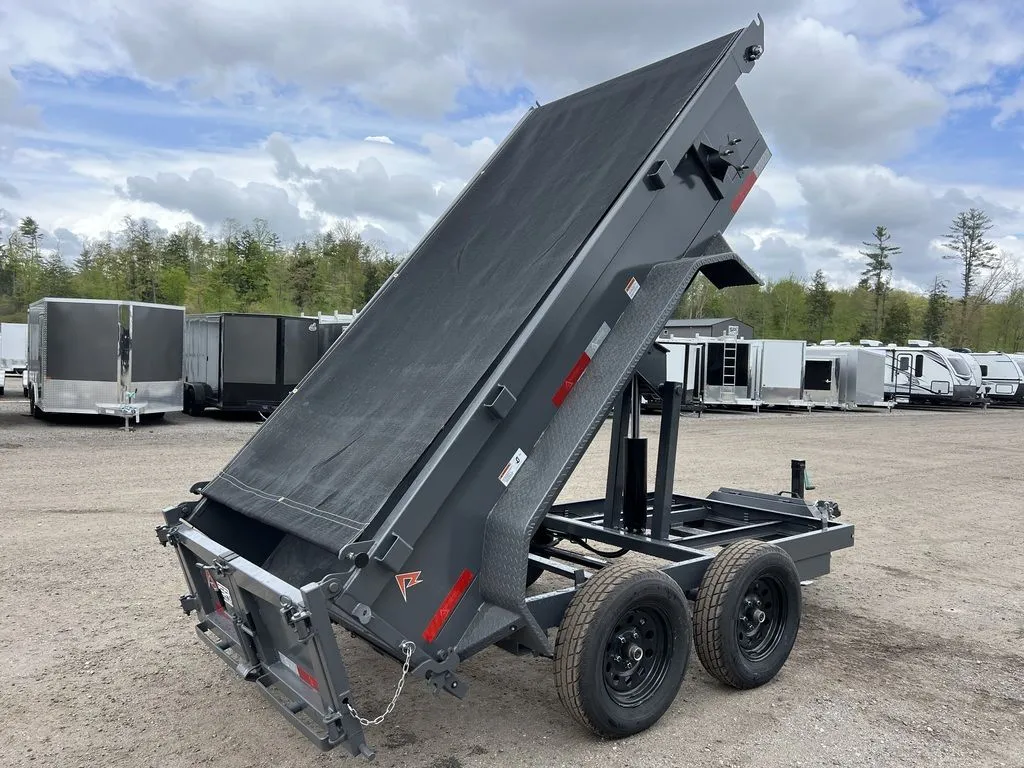

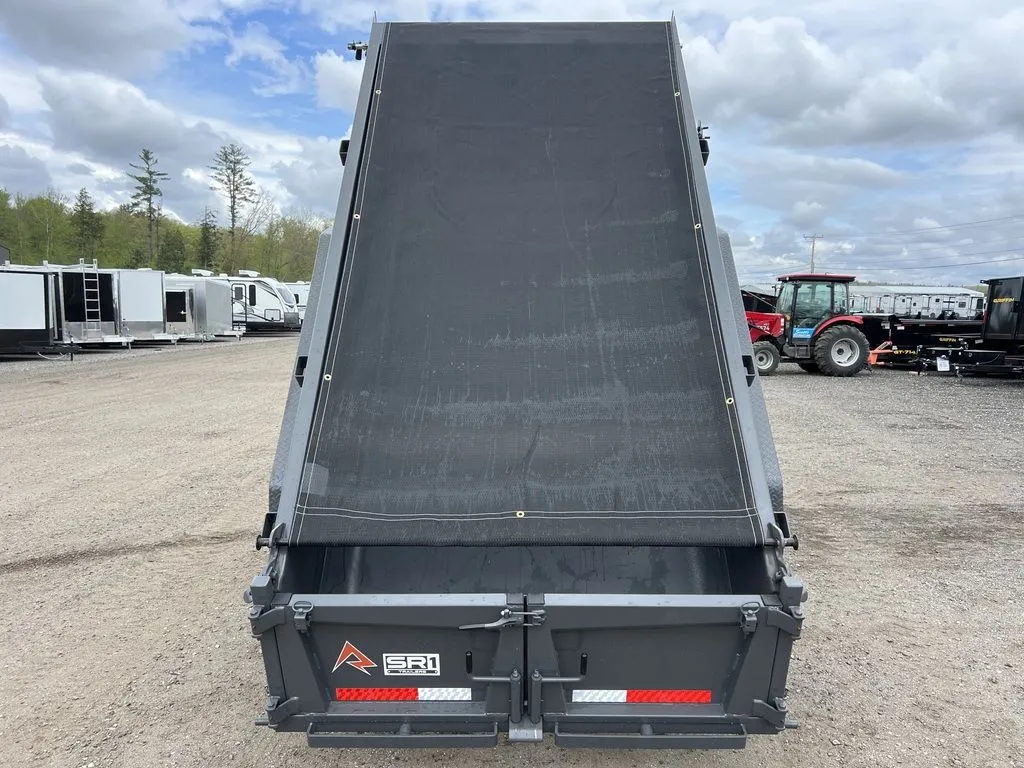

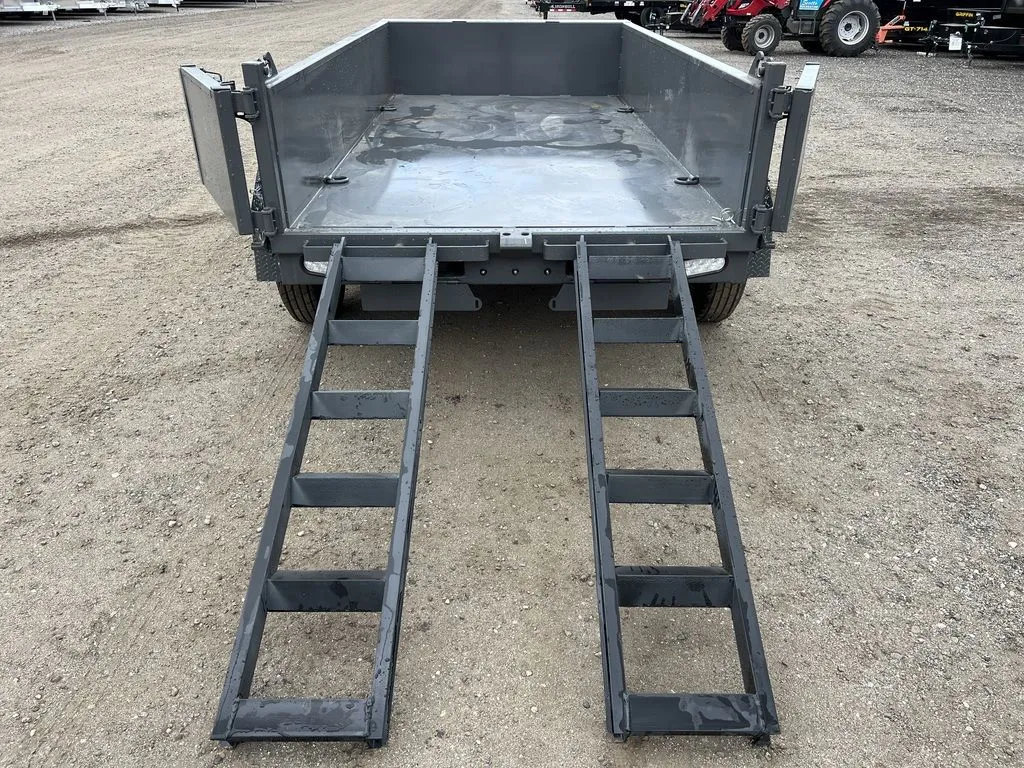

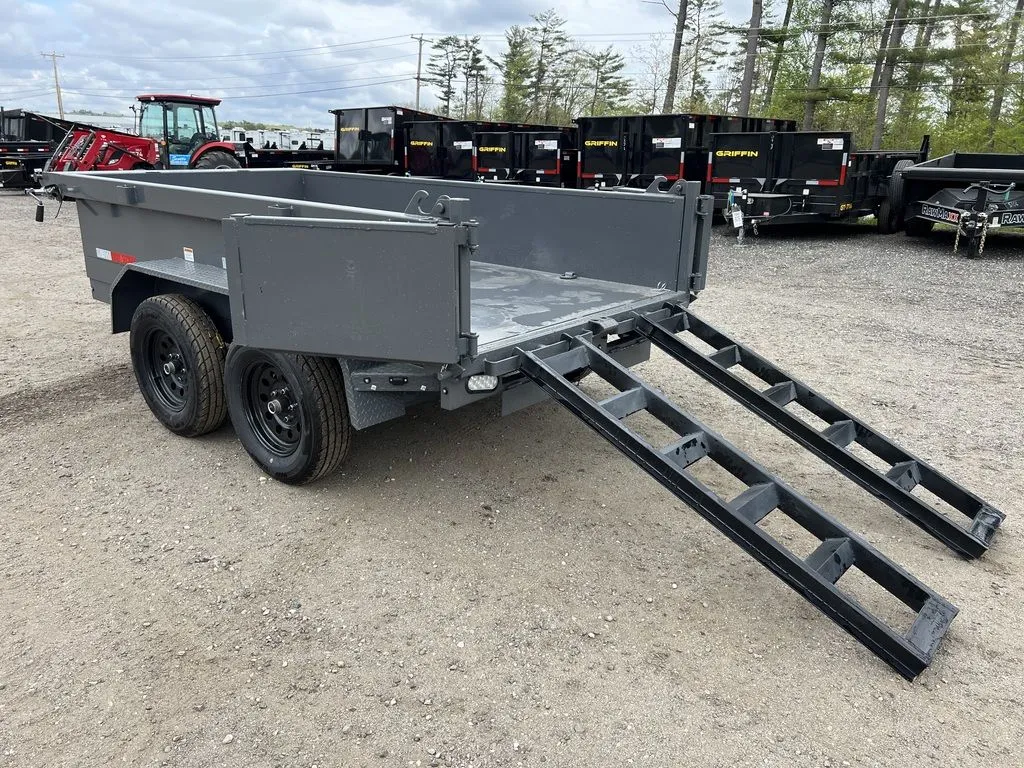

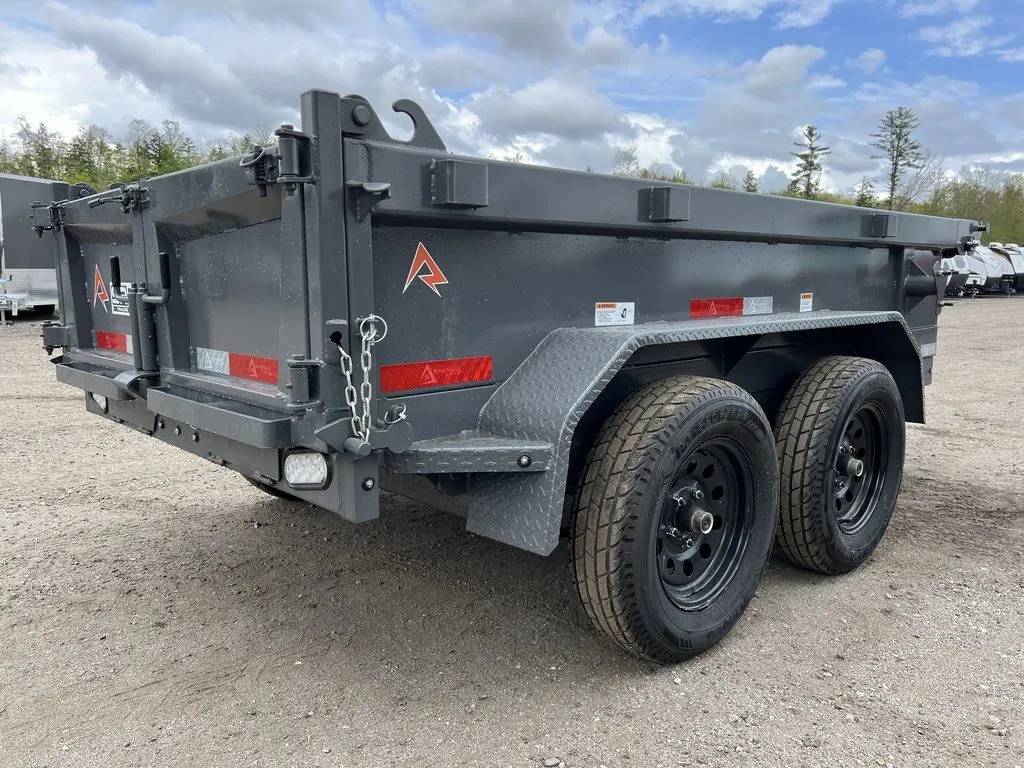

Unloading is where the options earn their money. Rear barn doors carry integrated spreader doors, so you can either swing them open for a single clean pile or crack the spreaders to lay material down evenly as you roll forward. Five-foot slide-out channel ramps stow under the bed and pull out when you need to drive a mower, pallet jack or compact machine aboard, and the manual tarp kit keeps a loose load contained and road-legal.
Features and Specifications
- Model SDX-10-BP7K, Shadow Grey, new condition
- GVWR 7,000 lbs, empty weight 2,494 lbs, payload 4,506 lbs

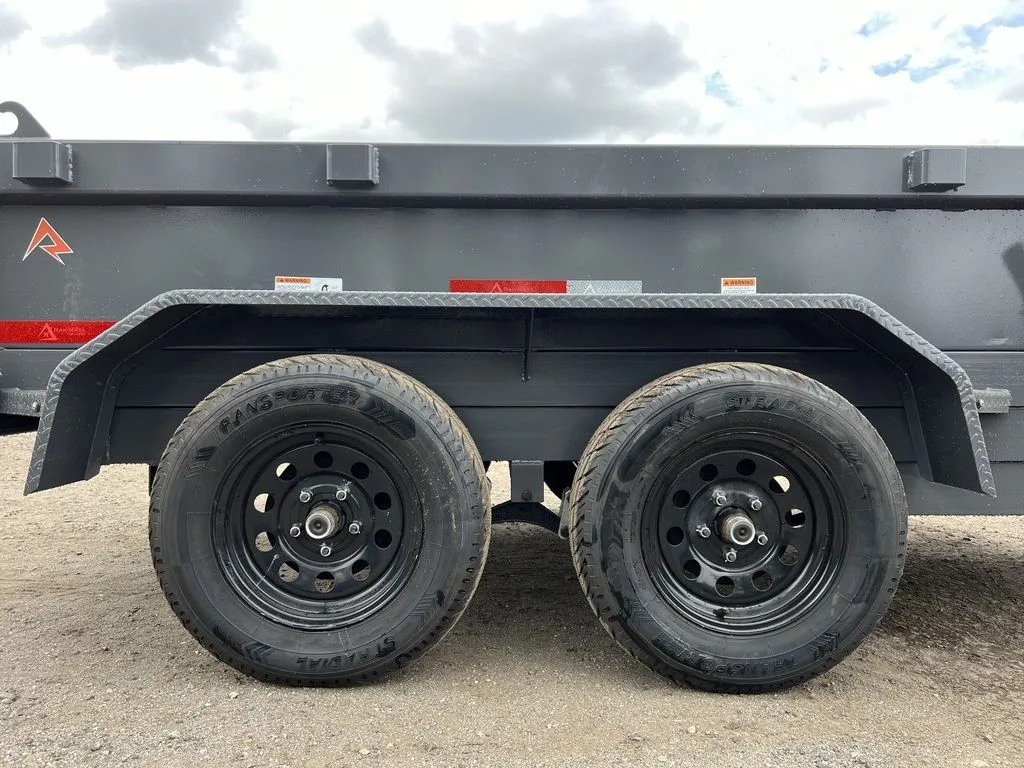

- Two 3,500 lb Dexter electric-braked spring axles on 15 in. black wheels
- 5 in. channel frame and tongue with 3 in. crossmembers on 16 in. centers
- 12-gauge sides standing 19 in. tall

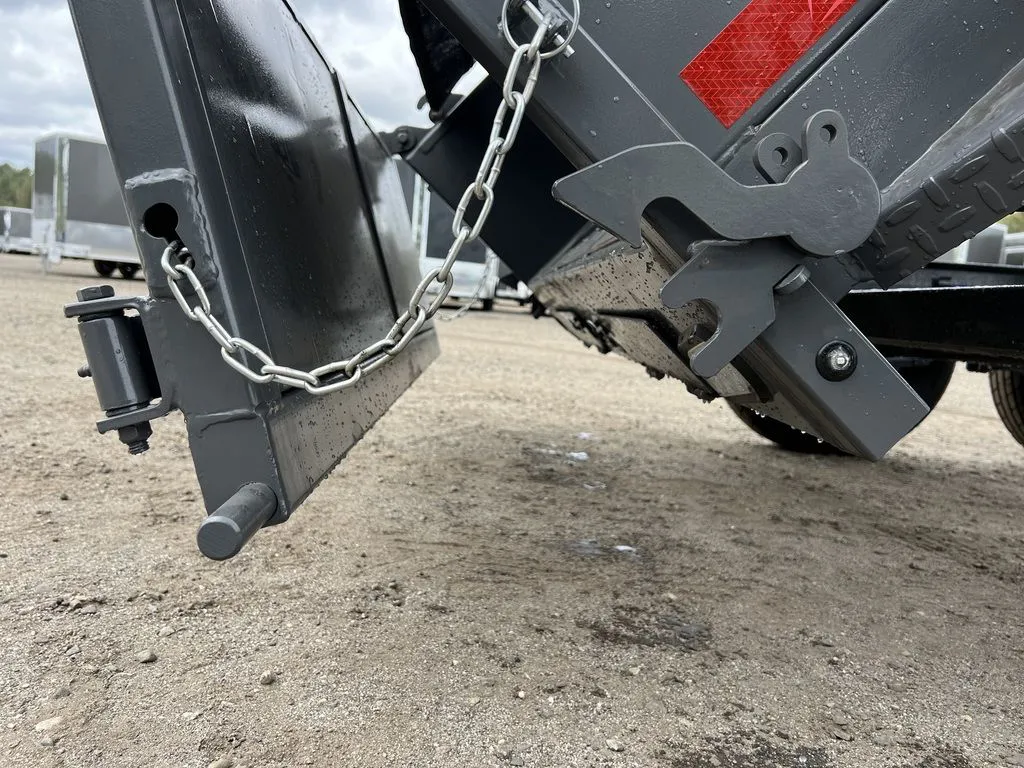

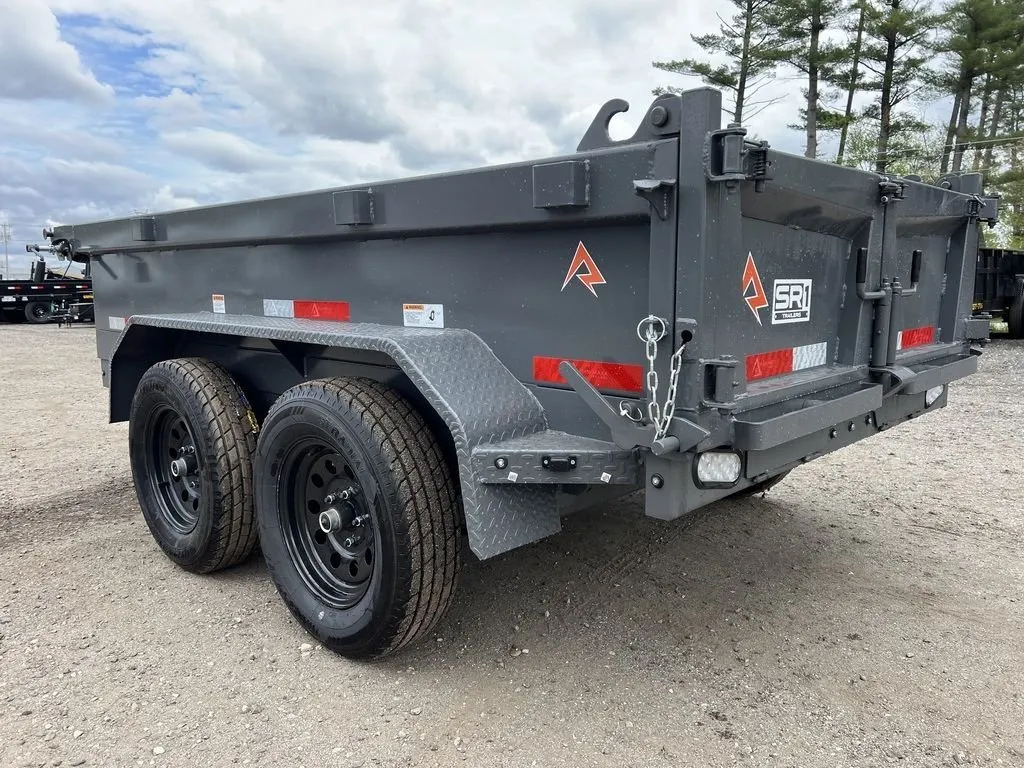

- Rear barn doors with integrated spreader doors
- Stake pockets and D-rings for tie-downs

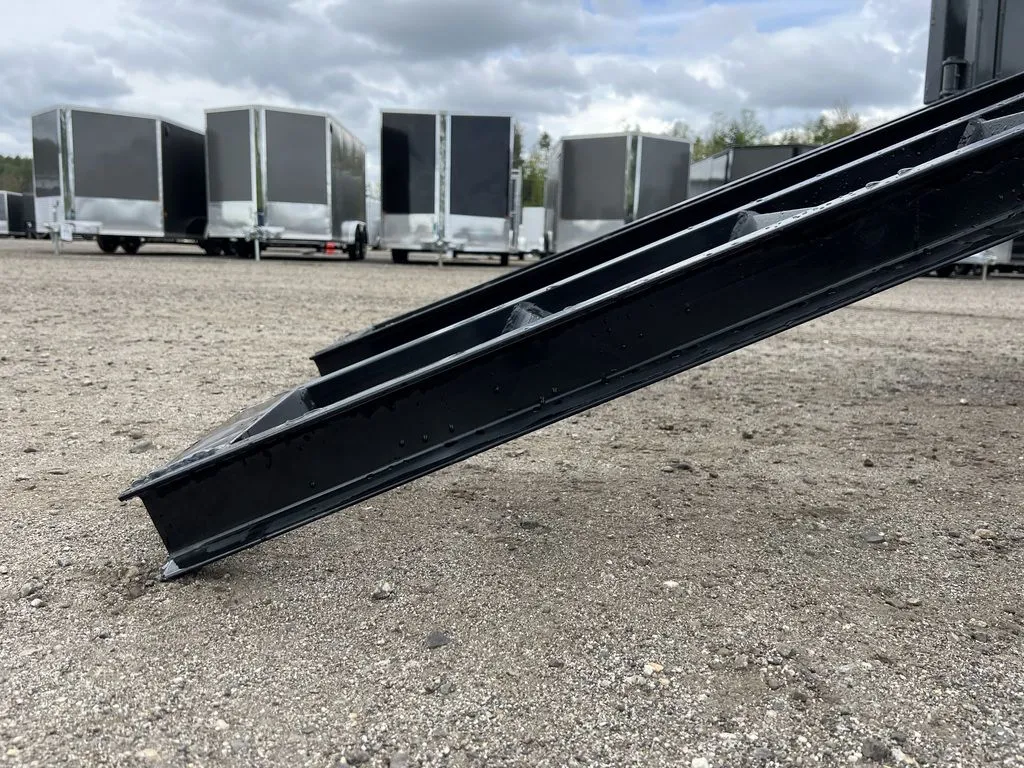

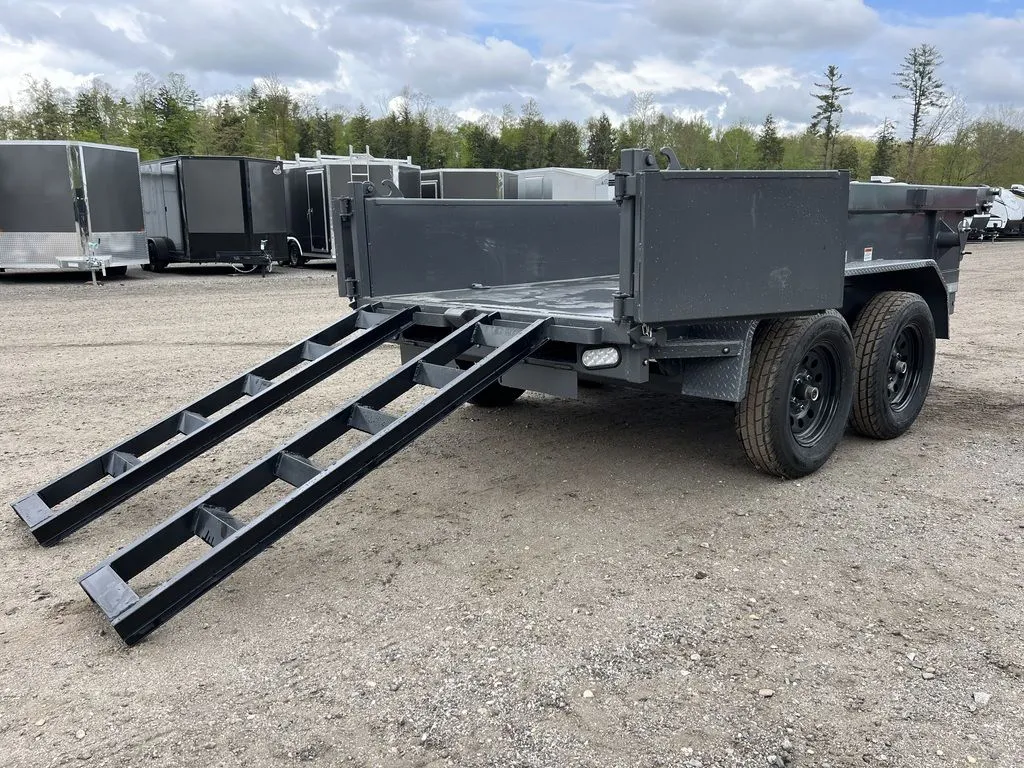

- Five-foot slide-out channel ramps and scissor lift hoist
- Adjustable 2 in. ball coupler, 7-way plug, electric breakaway kit

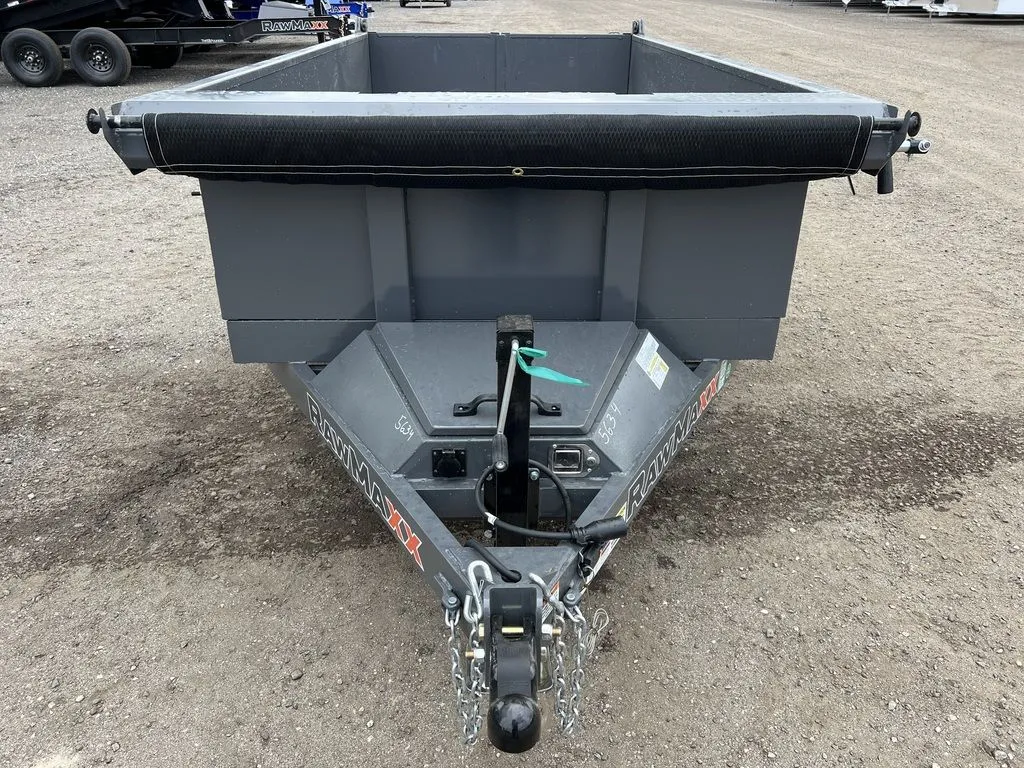

- Manual tarp kit, 1/4 in. safety chains, 7,000 lb drop-leg side-wind jack
- LED lighting and powder-coat finish

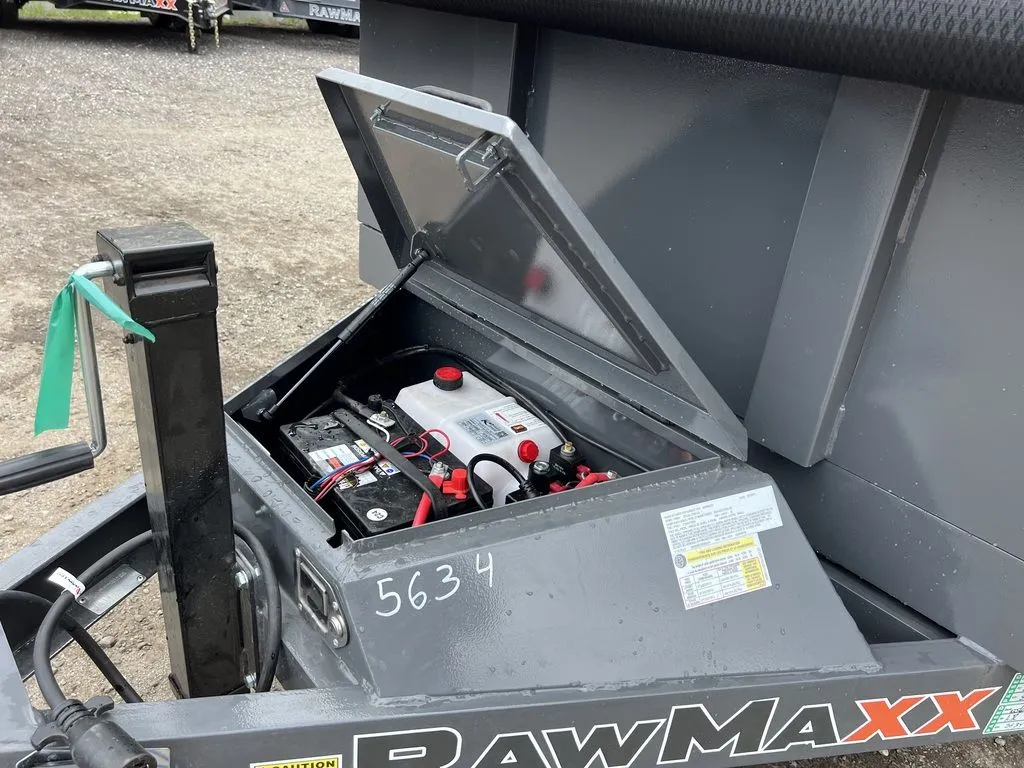

Think in pounds rather than cubic yards when you plan loads. Wet sand and gravel hit the 4,506 lb payload well before the box looks full, while brush, mulch and construction debris will fill it long before you run out of rating. Since this unit is brand new there is no wear to inspect, but it is still worth cycling the hoist, checking battery charge and setting tire pressures before the first job.
Delivery to the Lower 48 costs nothing, Puerto Rico is a flat $550, and orders generally move within 4 to 10 days of a cleared bank transfer. See what else is listed under Container Chassis and Trailers, get in touch through the Atlas quote form, or read how returns work in our 30-day returns policy.
