20ft Mobile Office Container on Trailer — HVAC, Retractable Staircase & Security Bars (New)

Description

The 20ft Mobile Office Container on Trailer from Atlas Container Supply is a top-quality, wind- and watertight steel unit engineered for secure, long-lasting performance.

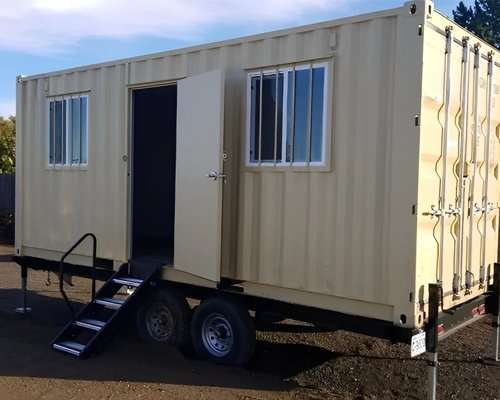

This 20ft mobile office container on trailer is a new, fully fitted portable workspace mounted on its own dedicated trailer for straightforward relocation between job sites without the need for crane lifts or separate transport arrangements. Built on a corrugated steel container body with 8 corner castings and two-way forklift pockets, the unit combines the structural integrity of a standard ISO container with a purpose-built office fit-out — HVAC, dual-pane windows, security bars, retractable staircase, and a personnel entry door are all included as standard.

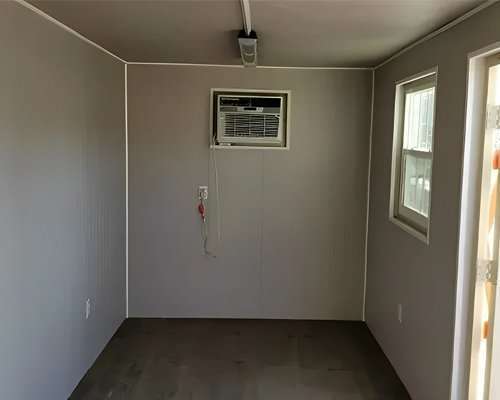

The HVAC system maintains a controlled interior temperature year-round, making the unit suitable for full-time occupation in hot summers and cold winters without supplementary heating or cooling. Dual-pane windows provide both thermal insulation and noise reduction — useful on active construction sites or noisy industrial locations. All windows are fitted with security bars to protect equipment and deter unauthorised access when the unit is unattended.

Access is via a retractable staircase with handrail and a dedicated steel personnel door. The staircase retracts for towing, reducing the unit’s road profile during relocation. The floor is 1⅛-inch (28.5mm) marine plywood on steel cross members, rated for heavy foot traffic and equipment loads. The corrugated steel exterior is weatherproof and engineered for long-term outdoor deployment in all climates.

The unit is trailer-mounted and tow-ready — a standard tow vehicle is required for relocation. Towing this unit on public roads is subject to state vehicle and trailer registration requirements, axle weight limits, and applicable road permit conditions. Confirm towing compliance with your state authority before road use. For reference, see the FMCSA regulations reference.

20ft Mobile Office Container — Dimensions

Internal dimensions are estimates based on standard 20ft ISO specification. Actual usable floor area will be reduced by HVAC unit, wall lining, and staircase housing — confirm finished dimensions with Atlas Container Supply at time of order.

20ft Mobile Office Container — Fit-Out Specification

Standard Inclusions — 20ft Mobile Office Container

• 20ft corrugated steel container body on dedicated trailer
• Built-in HVAC system
• Dual-pane insulated windows with security bars
• Steel personnel door
• Retractable staircase with handrail
• 1⅛in marine plywood floor on steel cross members
• 8 ISO corner castings
• Two-way forklift pockets

What’s Not Included

• Tow vehicle
• Mains electrical connection to site supply
• Furniture, desks, or office equipment
• Road registration and state towing permits
• Site preparation or levelling
• Plumbing or welfare facilities

Best Use Cases for a 20ft Mobile Office Container

• Construction and civil engineering site offices
• Remote project management and coordination hubs
• Event management and temporary administration offices
• Mining, energy, and utility site offices
• Emergency response command units
• Mobile sales or customer service offices

Also available: 32ft x 10ft Open Plan Portable Office Cabin, 20ft Container Home Office, and 8ft Custom Shipping Container Store.

Every unit is inspected by Atlas Container Supply prior to dispatch.

20ft Mobile Office Container on Trailer Overview

Built tough and ready to work, the 20ft Mobile Office Container on Trailer delivers secure, weatherproof performance at a price that makes sense. Supplied in new condition, it arrives quality-inspected and ready for immediate use across residential, commercial, and industrial applications.

Key Features of the 20ft Mobile Office Container on Trailer

• HVAC
• Retractable Staircase & Security Bars
• Pre-wired with lighting, outlets, AC and heating
• Large tinted windows for full visibility

20FT Specifications

• External dimensions: 20′ × 8′ × 8′6″
• Floor area: ~160 sq ft
• Internal volume: ~1,170 cu ft
• Construction: Corten (weathering) steel, wind & watertight
• Condition: New

Ideal Uses

The 20ft Mobile Office Container on Trailer is a versatile guard booth suited to a wide range of jobs, including:

• Security checkpoints and gatehouses
• Parking-lot and event entry control
• Site supervision posts
• Ticket and information kiosks

Construction & Durability

Structurally the 20ft office unit is factory-fresh one-trip steel with a rigid box frame: two rails, two headers, four posts, eight castings. Load paths run through the corners, so the walls stay unstressed and the doors keep their seal for the life of the unit.

Delivery & Site Preparation

Delivery is by tilt-bed truck: the bed angles up and the 20ft office unit slides off onto your ground — no crane, no second lift. Allow about 75ft of clear, straight approach so the bed can tilt and slide the unit off. Firm, level ground matters more than anything else; gravel or concrete piers under the four corners will keep the doors swinging true.

Why Buy From Atlas Container Supply

Buying new means you see no wear at all: no dents, no patch welds, no previous cargo. Freight is free, so the price you see is the price you pay. See related sizes in Trailers, browse everything in the container shop, or check the buyers guide before you commit.

20ft Mobile Office Container on Trailer – Frequently Asked Questions

What can I use it for?

This unit is ideal for security checkpoints and gatehouses, parking-lot and event entry control, and more — it adapts easily to residential, commercial, and industrial needs.

Is delivery included?

Yes — delivery is free on every order, and shows as $0 at checkout. The truck tilts and slides the unit onto your ground, so no crane hire lands on your bill.

Can I return it?

Within 30 days, yes. We inspect before shipping specifically so this does not come up — but the policy stands either way.

Ready to order? Add the 20ft Mobile Office Container on Trailer to your cart today and enjoy quality-inspected stock, secure checkout, and reliable delivery across the Lower 48 from Atlas Container Supply.
