2013 Cimarron 3 Horse Bumper Pull All Aluminum Trailer, 16 ft

Description

Aluminum Construction and a Roof With No Seams to Leak

Water is what kills horse trailers, and it usually gets in at the roof. Cimarron’s answer on this 2013 bumper pull is a one-piece aluminum roof with nothing for weather to work its way through, sitting on an all-aluminum structure and skin that will not rust the way a steel body eventually does. For an owner planning to keep a trailer a long time, that combination is worth paying attention to.

The trailer measures 6 feet 9 inches wide, 16 feet long and 7 feet tall, a size that three horses fit comfortably without making the rig awkward behind a pickup. Ventilation and light come from double Plexiglass slats on the head wall, the rump wall and the full back gate, an arrangement that moves air through the compartment while still shielding horses from wind and rain.

The horse area is finished for comfort and safety: rubber floor mats, rubber-lined rump wall and a rubber bumper cushion the ride, two dividers organize the space, and two dome lights plus load lights over the rear door and on the curbside make evening loading manageable. The dressing room takes care of gear with six hooks, a three-tier saddle rack and a cargo light. Note that this floor plan has no escape door.

Specifications

• 2013 Cimarron 3 horse bumper pull, VIN 5PAHB162XDC007913
• 6 ft 9 in wide by 16 ft long by 7 ft tall
• All-aluminum structure and skin with one-piece aluminum roof

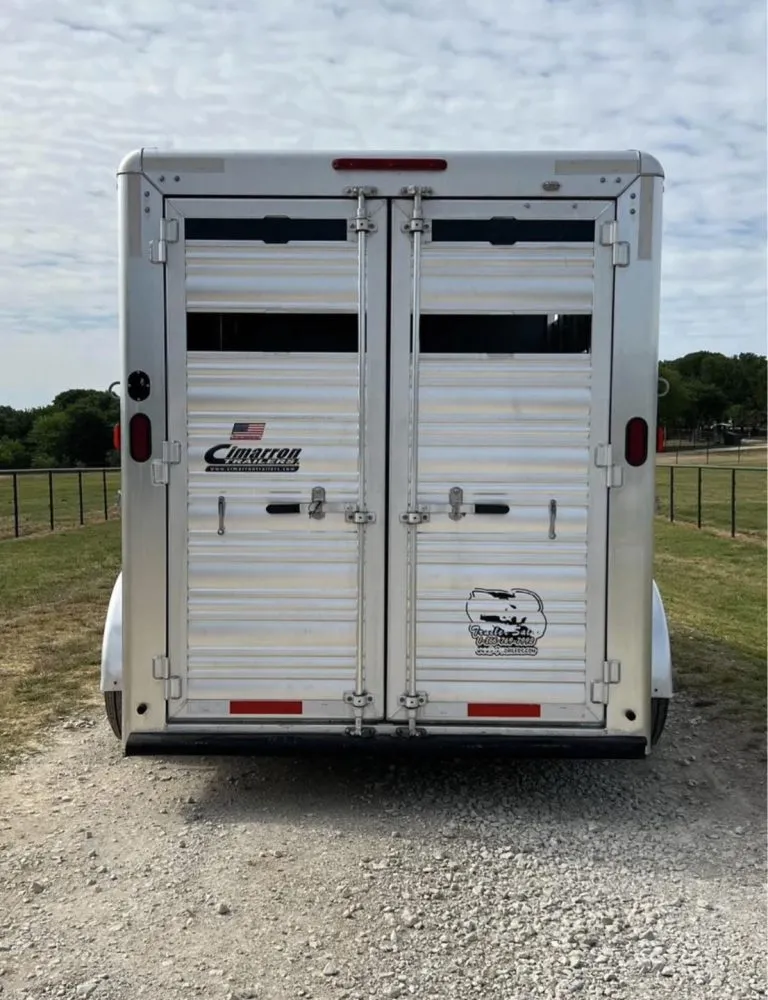

• Double Plexiglass slats on head wall, rump wall and full back gate
• Dressing room with six hooks, three-tier saddle rack and cargo light
• Two dividers and two dome lights in the horse compartment, no escape door
• Rubber floor mats, rump wall mats and rubber bumper
• 5,200 lb tandem rubber torsion axles with electric brakes on all four wheels
• 10-ply Goodyear ST235/80R16 tires on 16-inch six-hole steel rims
• Full rear gate, 7-way RV plug, 2-5/16-inch Fulton coupler
• GVWR 10,400 lb; dimensions and weights are approximate

The Escape Door Question, and Other Details

Decide early how you feel about loading without an escape door. Many experienced handlers work around it without a second thought, tying and untying from the outside; others consider a front exit essential, particularly with a green horse. Neither position is wrong, but it is a layout decision you cannot change after delivery, so be honest about your own handling style.

Beyond that, a bumper pull rated at 10,400 lb GVWR asks for a properly rated receiver hitch, a weight-distributing setup if your truck calls for one, and a brake controller matched to four braked wheels. On a used aluminum trailer, look closely at the welds around the frame joints and door frames, check the floor under the mats, and confirm the tire manufacture dates, since 10-ply tires can look healthy years past their useful life.

Atlas ships this Cimarron free to the Lower 48 and at a flat $550 to Puerto Rico, usually four to ten days after the bank transfer clears. Browse comparable rigs under Three Horse Trailers, or ask Atlas for a delivered price to your barn.
